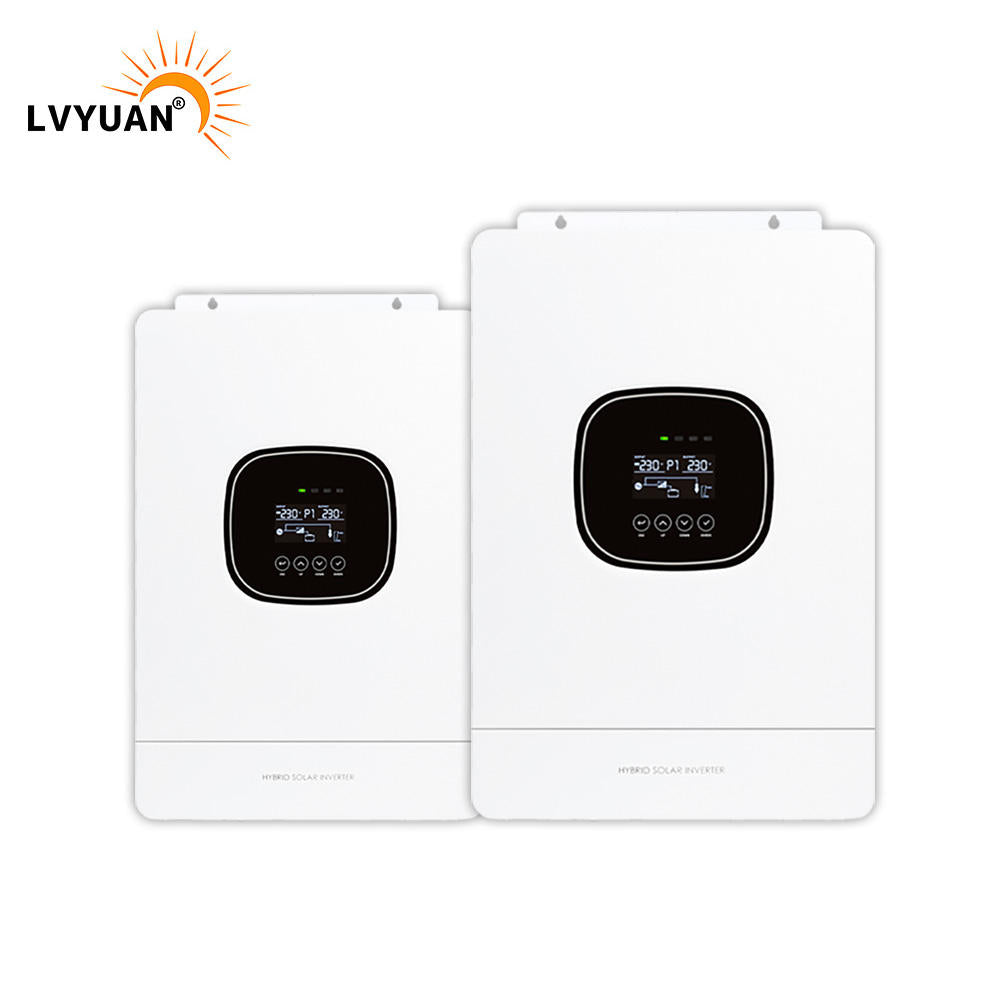

24v 48v Dc to 220v-240v Ac Single Phase Frequency Inverter Solar Inverter Price 3.6kw 5kw Hybrid Inverter for Home
Vendor:
Grasen
Availability:
Many in stock
€1.000,00
Couldn't load pickup availability
24v 48v Dc to 220v-240v Ac Single Phase Frequency Inverter Solar Inverter Price 3.6kw 5kw Hybrid Inverter for Home
Regular price
€1.000,00
Regular price
Sale price
€1.000,00
Unit price
per
24v 48v Dc to 220v-240v Ac Single Phase Frequency Inverter Solar Inverter Price 3.6kw 5kw Hybrid Inverter for Home
€1.000,00
|
Model
|
TY-SIC-3.6KBE-W1
|
TY-SIC-5KBEP-W1
|
|
Rated Output Power
|
3600W
|
5000W
|
|
Max.Peak Power
|
5400W(<200ms)
|
7500W(<200ms)
|
|
Rated Output Voltage
|
110V-240VAC（Customizable）
|
|
|
Load Capacity of Motors
|
2HP
|
4HP
|
|
Rated AC Frequency
|
50Hz /60Hz
|
|
|
Waveform
|
Pure Sine Wave
|
|
|
Switch Time
|
10ms(typical)
|
|
|
BATTERY
|
||
|

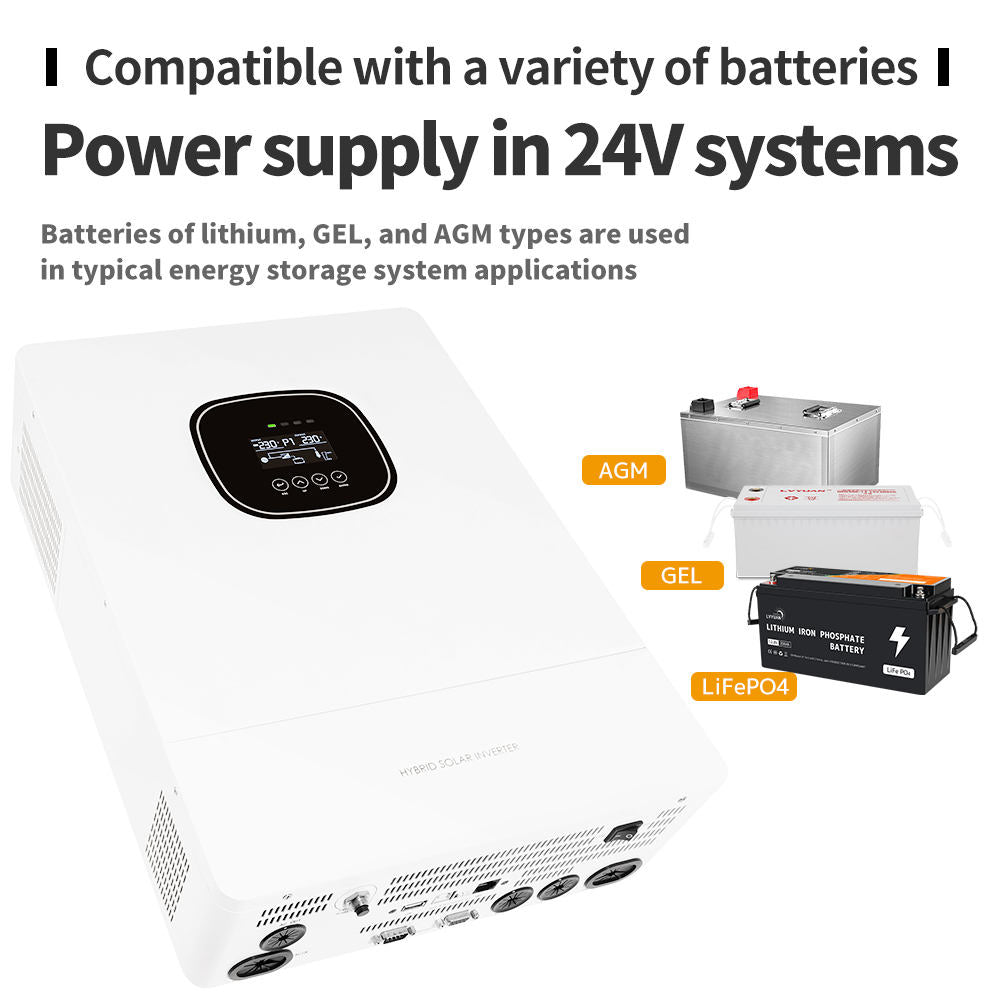

Battery Type
|
Li-ion / Lead-Acid / User Defined
|
|
|
Rated Battery Voltage
|
24V
|
48V
|
|
Voltage Range
|
20V-30V
|
40V-60V
|
|
Max.MPPT Charging Current
|
100A
|
80A
|
|
Max.Mains/Generator Charging Current
|
100A
|
80A
|
|
Max.Hybrid Charging Current
|
100A
|
80A
|
|
PV INPUT
|
||
|
Number of MPPT Trackers
|
1
|
|
|
Max.PV Array Power
|
5000W
|
6000W
|
|
Max.Input Current
|
18A
|
21.8A
|
|
Max.Voltage of Open Circuit
|
500Vdc
|
|
|
MPPT Voltage Range
|
40-450Vdc
|
120-450Vdc
|
|
MAINS/GENERATOR INPUT
|
||
|
Input Voltage Range
|
90-280Vac
|
|
|
Frequency Range
|
50Hz/60Hz
|
|
|
Bypass Overload Current
|
20A
|
40A
|
|
EFFICIENCY
|
||
|
MPPT Tracking Efficiency
|
99.5%
|
|
|
Max. Inverter Efficiency
|
92%
|
|
|
GENERAL
|
||
|
Size
|
405x320x110mm
|
470*343*100mm
|
|
Weight
|
6.5kg
|
9.5kg
|
|
Protection Degree
|
IP21,only indoor
|
|
|
Operating Temperature Range
|
-10℃ ~50℃
|
|
|
Safety Class
|
Class I
|
|
|
Max Parallel
|
NO
|
9
|
|
COMMUNICATION
|
||
|

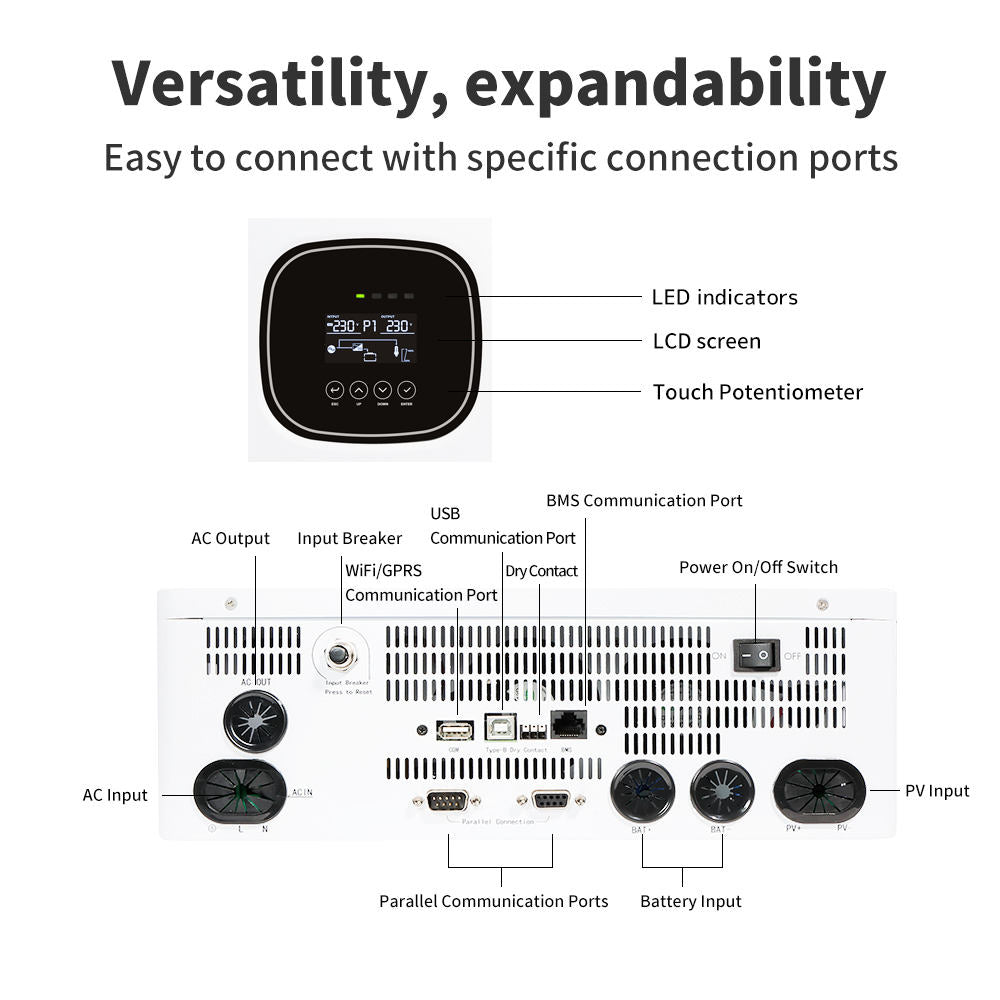

Interface
|
RS485/CAN/Dry Contact
|
|
|
External Modules(Optional)
|
Wi-Fi / GPRS
|
|
